Gold & EP Kilns
Gold Series

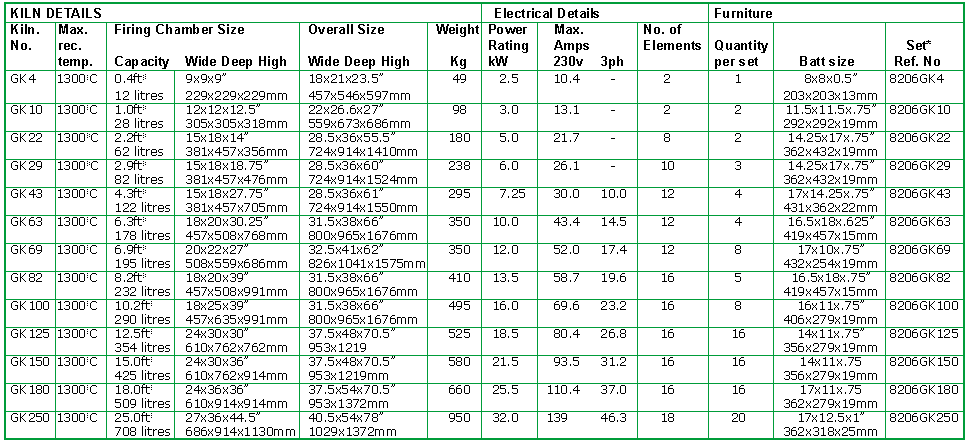

Click the image below to enlarge the comparison table.
Gold front loading kilns are very durable, reliable and exceptionally efficient production kilns of high performance for school or industrial use. They are constructed from the latest high temperature insulation refractories comprising an ultra-efficient brick hot face and back-up insulation to give a 150mm thick wall of exceptionally low conductivity. This ensures extremely low heat loss, very low external temperatures and amazingly low firing costs. Elements, in highest grade Kanthal for long life and fast, economical performance up to 1300oC, are fitted to both side walls and hearth.The robust angle iron framework featuring an integral stand houses ventilated sheet steel panels which are treated with corrosion resistant paints and very attractively finished in grey and black. Large spy holes are fitted into the door and a large vent in the roof.
EP Series
Click the image below to enlarge the comparison table
| Kiln Details | Electrical Details | Furniture | ||||||||||
| Kiln | Max | Firing Chamber Capacity | Overall Size | Weight | Power Rating | Max Amps | No. Of | Quantity | Batt | Set Ref. | ||
| No. | Temp. | Capacity | Width x Depth x Height | Width x Depth x Height | Kg | KW | 230V | 3ph | Elements | Per Set | Size | No |
| EP38 | 1300°C | 3.8ft 107 litres |
18 x 19.5 x 18.75 inches 457 x 495 x 476mm |
28.5 x 36 x 60 inches 724 x 914 x 1524mm |
220 | 7.0 | 30 | 10 | 10 | 3 | 17 x 17 x 1 inches 432 x 432 x 25mm |
8206EP38 |
| EP45 | 1300°C | 4.5ft 127 litres |
17.75 x 21.5 x 22 inches 451 x 546 x 559mm |
28.5 x 38 x 64 inches 724 x 965 x 1626mm |
270 | 7.9 | 34 | 11.3 | 12 | 4 | 18 x 16.5 x .625 inches 457 x 419 x 16mm |
8206EP45 |
| EP56 | 1300°C | 5.6ft 160 litres |
18 x 19.5 x 27.75 inches 457 x 495 x 705mm |
28.5 x 36 x 66 inches 724 x 914 x 1676mm |
285 | 9.5 | 39.6 | 13.2 | 12 | 4 | 17 x 17 x 1 inches 432 x 432 x 25mm |
8206EP56 |
| EP73 | 1300°C | 7.3ft 206 litres |
21 x 21.5 x 30.25 inches 533 x 546 x 768mm |
31.5 x 36 x 66 inches 800 x 914 x 1676mm |
340 | 12.0 | 52.5 | 17.5 | 12 | 4 | 19.5 x 20 x 1inches 495 x 508 x 25mm |
8206EP73 |
| EP84 | 1300°C | 8.7ft 246 litres |
21 x 26 x 27.5 inches 533 x 660 x 699mm |
31.5 x 44 x 65 inches 800 x 1117 x 1651mm |
380 | 13.5 | 59 | 19.7 | 12 | 6 | 19 x 12.5 x 1 inches 483 x 317 x 25mm |
8206EP84 |
| EP95 | 1300°C | 9.5ft 270 litres |
21 x 21.5 x 39 inches 533 x 546 x 990mm |
31.5 x 38 x 66 inches 800 x 965 x 1676mm |
400 | 16.8 | 70 | 23.3 | 16 | 5 | 19.5 x 20 x 1inches 495 x 508 x 25mm |
8206EP95 |
| EP117 | 1300°C | 11.7ft 331 litres |
21 x 26.5 x 39 inches 800 x 965 x 1676mm |
31.5 x 38 x 66 inches 800 x 965 x 1676mm |
480 | 19.5 | 81.2 | 27.1 | 16 | 8 | 19 x 12.5 x 1 inches 483 x 317 x 25mm |
8206EP117 |
EP kilns combine the great durability of the 'Gold' kiln design (and have the same robust angle iron construction and hot face brickwork) but using a 115mm wall thickness. This gives a lower capital cost and a quicker cooling rate: factors which will be appreciated in busy production situations.The kilns have been designed to be a cost effective package and incorporate (priced separately on our webshop) a thermocouple and choice of Hobbymaster 4, Firemaster 6 or Zonemaster temperature controller which is factory fitted. EP kilns can be seen to give a very good capacity/price ratio.
The kilns are attractively spray powder-coat finished in silver grey.
